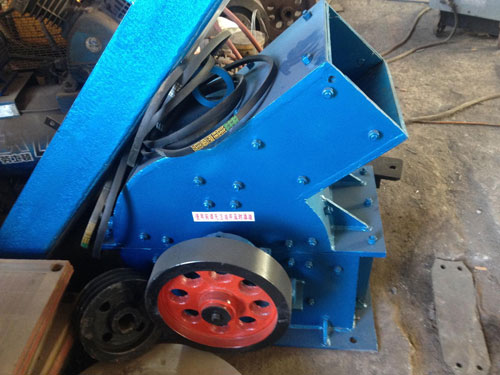

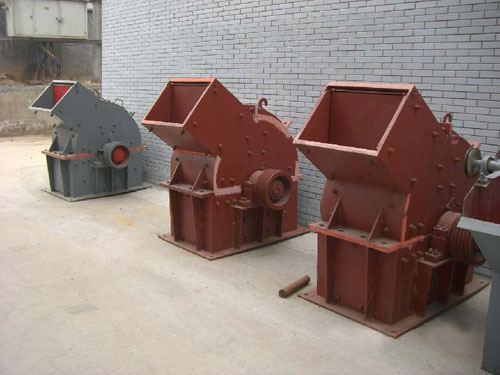

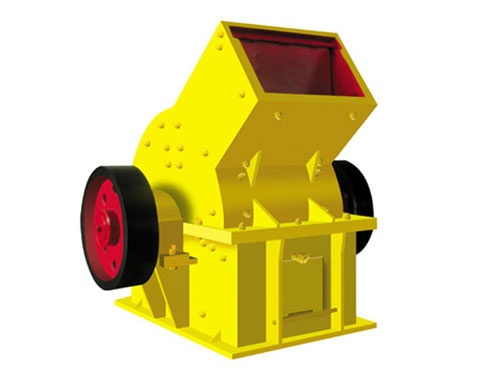

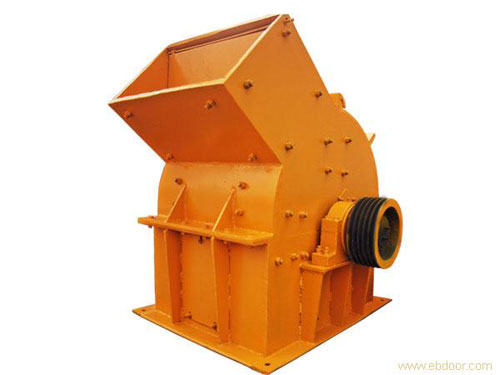

Hammer Crusher

  • Model: PC400×400

  • Rotor speed (r/min): 1500

  • Feed opening size (mm): 145×295

  • Discharghing size (mm): 0-30

  • Capacity (t/h): 5-8

The above for reference only, please click below to know more.
■ Advantages

Introduction:
Hammer crusher is used for crushing medium hard materials with weak abrasiveness, and the compression strength of the materials to be crushed should not exceed 100MPa, and the water content should be lower than 15%. The materials of hammer crusher are coal, salt, chalk, gypsum, tile and limestone and also fiber structure and broken wood and paper with strong elasticity and tenacity.


■ Working Principle

Features:
The series of products of big crushing ratio,a broken place,in order to replace the traditional two or three stage crushing.It has the advantage of low investment,high output,compact structure,convenient repair,saving the cost of production.


■ Parameters

Model

Rotor speed (r/min)

Feed opening size (mm)

Max feeding size (mm)

Discharghing size (mm)

Capacity (t/h)

Motor power (kw)

Weight (t)

Overall dimensions L×W×H (mm)

PC400×400

1500

145×295

100

0-30

5-8

7.5

0.9

844×942×878

PC600×400

1000

295×450

100

0-35

10-12

18.5

1.5

1000×1000×1300

PC600×600

1000

295×570

100

0-35

12-18

45

2.14

1315×840×1501

PC800×600

1000

350×570

120

0-45

20-25

55

2.45

1515×2586×1040

PC800×800

1000

350×850

120

0-45

35-45

55

3.05

1515×2831×1040

PC1000×800

1000

580×580

200

0-45

25-40

110

6.5

3206×2210×1515

PC1000×1000

1000

580×1060

200

0-45

40-80

132

7.59

3514×2230×1515

PC 1250×800

750

650×850

200

0-45

20-50

132

11.7

2630×1780×2050

PC1250×1250

750

650×1330

200

0-45

90-110

185

13.2

2630×2180×2050

PC1400×1400

750

1050×1540

250

0-45

120-170

280

17.2

2790×2800×2310

PC1600×1600

600

1500×1785

350

0-60

220-280

450

22.8

3350×3120×2660
